waku-agent

Your own AI assistant. On your laptop. In code you can read in an afternoon.

Meet Waku — a local-first personal assistant that shows the four pillars behind every serious agent: Harness · Loop · Memory · Eval/LLM-Ops. No frameworks hiding the good parts. Built by seanchen.io.

• Local-first. Your memory is one SQLite file. Open it. Read it. It's yours.
• Memory is the hero. Semantic + episodic + procedural — with a gate that decides whether to remember, and a pass that decides what to keep.
• The loop is ~95 lines of plain Python. Step through it.
• Watch it think. A local dashboard lights up every message as it flows through the harness.
• Eval built in. Deterministic tests and LLM-as-judge, side by side, with a release gate.

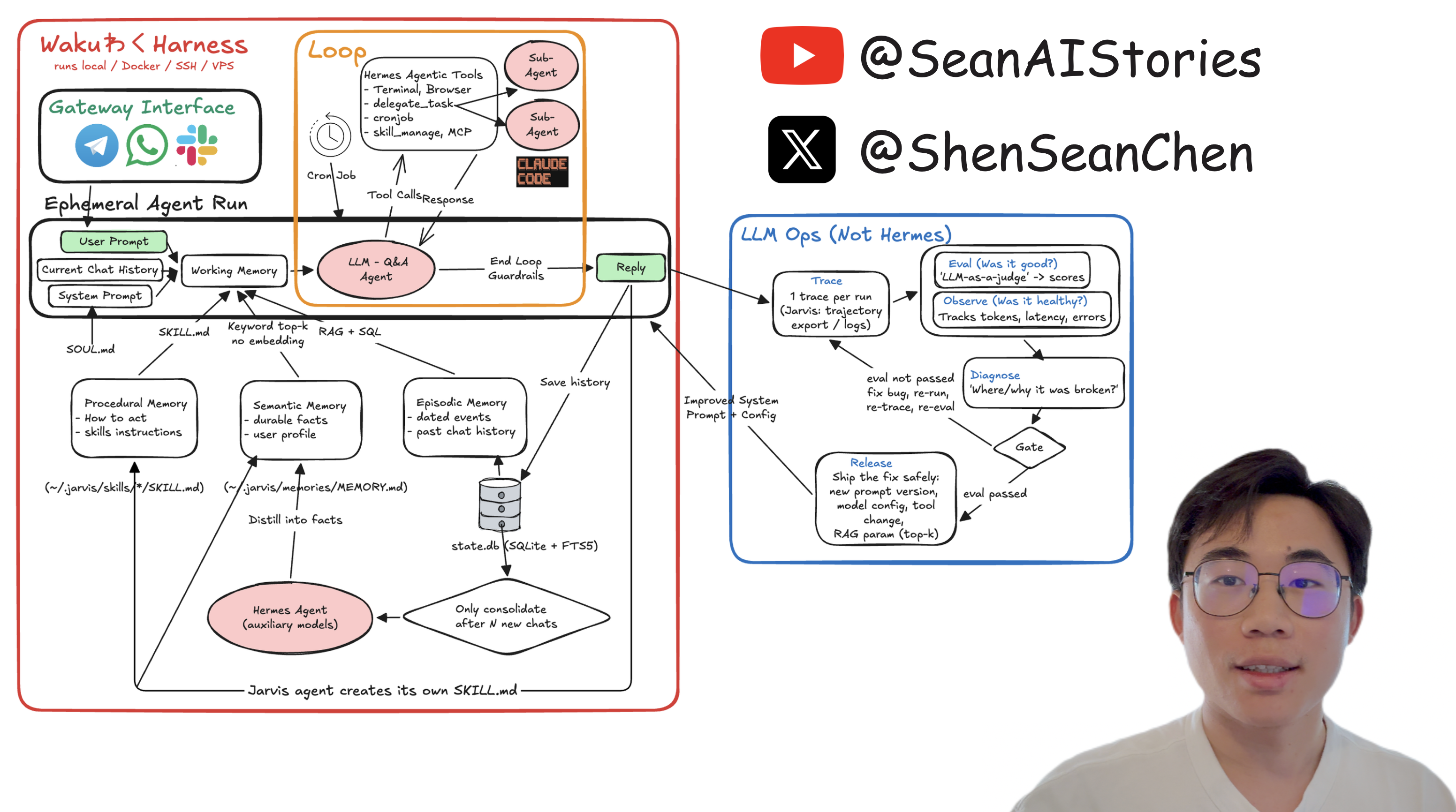

The system-design whiteboard from the series. Every box maps to a file — see the whiteboard maps to the code.

▶ Watch the 20-min code walkthrough — the loop, the memory pillars, the evals, the Telegram gateway and the "Waku Waku" wake word, live.

YouTube · X · LinkedIn · Instagram · TikTok · Discord · 哔哩哔哩 · 小红书 · 抖音

☕️ Buy me a coffee — it keeps this repo (and the videos) coming

Quickstart

Just want to run it:

pip install waku-agent
waku                                    # talk to your Waku in the terminal
waku dashboard                          # …or the browser cockpit → localhost:7777

It will tell you which key to set the first time. Want to read the code (the point of this repo) or contribute — clone it instead:

git clone https://github.com/ShenSeanChen/waku-agent && cd waku-agent
uv venv && uv pip install -e .          # create the env + install the `waku` command
cp .env.example .env                    # pick a provider, paste ONE key
uv run waku                             # talk to your Waku in the terminal
uv run waku dashboard                   # …or the browser cockpit → localhost:7777

uv run waku … needs no venv activation. Three ways to run it:

waku and waku dashboard are two doors into the same Waku. The dashboard is a tiny web server on your machine — chat in the browser, that process runs the turn. Nothing leaves your laptop. Set TELEGRAM_BOT_TOKEN and it starts your bot too. (make dashboard works as well.)

Now try it. "Remember that Alex prefers morning meetings." Quit. Restart. "Book a catch-up with Alex on Friday." → it remembers, and books 9am. Your memory is one file: .waku/state.db.

Use the model you already pay for. Anthropic (default), OpenAI, Gemini, DeepSeek, MiniMax, Kimi, GLM, OpenRouter (one key, hundreds of hosted models), OpenCode Zen, or OpenCode Go — set WAKU_PROVIDER=, paste the key, done. One dialect in the loop; a ~60-line adapter handles the rest.

Watch the harness run — the dashboard

waku dashboard          # starts a local server → http://localhost:7777

A small web server you own (127.0.0.1, no cloud). The browser is just the UI — the same process runs every turn. This is the fastest way to get the system.

A chat dock sits on every tab. Type or speak, and watch it flow through the harness on the Overview diagram: gate lights up → loop calls a tool → reply comes back → memory updates. The frontend is plain static files. No build step.

Each tab is one pillar, linked to the real files:

The sidebar and chat dock are drag-resizable and hideable, and the chat has New chat + history like any chat app.

Things to try (each shows off a pillar)

Type these in the chat dock (or make run) and watch the dashboard light up:

The money shot is the World Cup one. In one turn, Waku searches the web a few times, reasons over the results, and books every remaining match — 8 loop iterations, live. Needs a free TAVILY_API_KEY (paste it in Connections). Watch the LOOP box pulse per cycle. That's loop engineering, on tape.

How is this different from ChatGPT / Claude Desktop?

Those are products you use. This is a codebase you own — the loop, the memory schema, the gate, the eval harness, all yours to read and change. Understand this repo, and you understand what the products do under the hood.

Versus the big open-source assistants (OpenClaw, Hermes)? Same architecture, 1/100th the code. Products vs. a readable blueprint.

The whiteboard gallery — editable system-design charts

Every whiteboard from the videos lives in docs/whiteboards/ as an editable .excalidraw source — download one, drop it on excalidraw.com, and remix it for your own team:

New charts land here with every video. If they help you, a star keeps them coming — and sponsoring gets new whiteboards early.

The whiteboard maps to the code

This diagram renders straight from the README (it's Mermaid text, not an image — edit it in a PR):

flowchart LR
  GW["Gateway<br/>cli · telegram · voice · dashboard"] --> WM["Working memory<br/>SOUL.md + memory + history"]
  WM --> LLM
  subgraph LOOP["The Loop — loop/agent.py"]
    LLM["LLM"] -->|tool call| TOOLS["Tools<br/>create_event · list_events<br/>search_web · save_note · …"]
    TOOLS -->|result| LLM
  end
  LLM -->|reply| REPLY["Reply"] --> GW
  GATE{{"Retrieval gate<br/>does this turn need memory?"}} -. only if needed .-> WM
  MEM[("Memory — state.db<br/>SQLite + FTS5<br/>semantic · episodic · procedural")] --> GATE
  REPLY -. save chat .-> MEM
  MEM -->|every N chats| CONS["Consolidate → facts"] --> MEM
  REPLY --> OPS["LLM Ops<br/>trace → eval → gate → release"]
  OPS -. improved prompt/config .-> WM
  WM -.- WATERMARK["waku-agent · Sean's AI Stories · @ShenSeanChen"]:::wm
  classDef wm fill:none,stroke:none,color:#9aa0aa,font-size:11px;

Architecture of waku-agent — built on the series (@ShenSeanChen). Code is MIT; this diagram is licensed CC BY-NC-SA 4.0 — reuse it with credit to the channel, not for commercial resale.

Every box is one module (full version with every file path: docs/architecture.md):

A note on MEMORY.md vs state.db. Some assistants (e.g. Hermes) keep long-term memory as a single MEMORY.md markdown file. Waku keeps the queryable source in state.db (the facts and episodes tables, keyword-searchable via FTS5) and regenerates a human-readable .waku/MEMORY.md mirror after every turn — so you get both: a real file you can open, backed by a sturdy database. The dashboard's Memory tab is the friendly view; the Database tab shows the raw state.db tables.

The Loop — reason → act → repeat

Yes, there's a real agent loop, and it's ~95 lines of plain Python — no LangGraph, no hidden control flow (and when a task needs structure around the loop, that structure is another ~200 readable lines — see Graph workflows below):

while not done:
    response = llm(messages, tools)      # reason
    if response wants tools:
        results = run(tool_calls)        # act
        messages += results              # observe
    else:
        done                             # reply to the human

Two guardrails end every turn: the model stops asking for tools (natural end), or it hits max_iterations (hard stop — it never spins forever). That's "loop engineering": the exit conditions, the tool round-trip, and feeding results back as working memory.

How to show it on camera: 1. Type "schedule a swim with Sergey Saturday at 5pm" in the chat dock and watch the LOOP box on the Overview diagram light up: reason → create_event → reason → reply. 2. Open the Loop tab — every turn is listed with its gate decision, each tool call, the iteration count, tokens, and dollar cost. A tool-using turn shows iter 2 (reason, act, then reason again to reply); a plain answer shows iter 1. 3. Open the Ops tab (or .waku/traces/<today>.jsonl) to read that same turn as raw events in order: turn_start → gate → llm → tool → llm → turn_end. That's the loop, on tape.

The multi-tool loop (the money shot). One tool is a loop; chaining tools is where loop engineering earns its name. Try:

"Search for the World Cup games still left to play and add each one to my calendar."

The agent loops across two tools: search_web reads the web, it reasons over the results, then calls create_event once per match — several iterations in a single turn. You'll see iter 4, iter 5… on the Loop tab and the LOOP box pulse for each cycle. search_web works keyless via DuckDuckGo but that endpoint rate-limits bots, so for a clean take set a free TAVILY_API_KEY (see .env.example).

Graph workflows — when a turn needs shape

The loop is one agent turn: the model picks tools until it stops, and that covers chat. But some work has shape — steps that could run at the same time, and explicit "if this, go here" routing. A graph workflow makes that shape first-class: nodes (each does one job — a function, one LLM call, or a whole loop turn) connected by edges (what happens next). It's an extension of the Loop pillar, not a replacement: loop/agent.py did not change one line — a graph arranges calls around it, and to it. And it's still no-framework: the entire engine is one readable file, same trick as the loop.

flowchart LR
  subgraph L["The loop — one path, step after step"]
    T["think"] --> A["act"] --> O["observe"] --> T
  end
  subgraph G["A graph workflow — a map of steps"]
    S(["START"]) --> C["classify<br/>small model"]
    S --> K["check calendar<br/>local read"]
    C --> R{"route"}
    K --> R
    R -. quick .-> Q["quick reply<br/>small model"] --> E(["END"])
    R -. full .-> F["full agent<br/>THE loop, as a node"] --> E
  end

The shipped example: triage. Flip WAKU_GRAPH_WORKFLOWS=1 (in .env, or the dashboard's Settings) and every message enters the triage graph first — you never choose a mode, the harness decides. A small model classifies the message while today's calendar loads in parallel; "thanks!" gets a fast small-model reply and never wakes the big model; "schedule a swim Saturday" routes into the exact same loop as before, running as one node. Any failure anywhere — classifier, engine, anything — fails open to the plain loop, so the flag can only ever save time and tokens. This is the retrieval-gate idea generalized from one gate to a structure. (A graph is not a swarm of chatting agents: the edges decide everything, deterministically — which is why it can be traced and eval'd like everything else here.)

How to show it on camera: 1. Switch the flag on, then send "thanks!" — on Overview, the graph panel lights the quick path while the LOOP boxes stay dark: proof the big model never woke. 2. Send "schedule a swim Saturday 9am" — watch route → full_agent light up, then the familiar loop animation take over. Same loop, one graph node. 3. Open the Graph tab: the live topology there is drawn from the engine's own describe() — the picture cannot drift from the code. The trace (.waku/traces/<today>.jsonl) shows the run on tape: graph_start → node_start … route → graph_end.

The two hero moments

1. The retrieval gate. Most agents hit their memory store on every turn. That's slow, and worse — irrelevant memories bias answers. Here a cheap model first answers one question: does this message need memory at all? Watch it in the terminal:

you > what's 2+2?
  gate · skip — pure math
you > when am I meeting Alex?
  gate · retrieve — references user's plans

2. Deterministic eval vs LLM-as-judge. "Did it create the right calendar event?" is a unit test — 0 or 1, no model judges it (make eval). "Was the reply helpful?" is a judged score with a threshold (make eval-judge). Conflating the two is the most common eval mistake; here they're separate suites you can diff. make gate runs both as a release gate.

Eval, tracing & catching bugs

Three commands, two kinds of eval — the LLM-Ops half of the system:

make eval          # deterministic: "did the right tool fire?" — 0 or 1, no model judges it
make eval-judge    # LLM-as-judge: "was the reply helpful?" — a scored %, needs a key
make gate          # the release gate: deterministic must pass 100%, judge must clear threshold

Deterministic tests are plain pytest in evals/deterministic/; judged ones use DeepEval in evals/judge/. Keeping them apart is the whole point — conflating "did it do the thing" (a unit test) with "was it any good" (a scored judgement) is the most common eval mistake.

Where the results show: the terminal, and the dashboard's Ops tab — the release-gate verdict, an eval-history table (one row per make gate, so you can see it grow), the actual per-turn gate decisions, and the raw traces inline.

The bug workflow (this is the discipline you show on camera): when you catch a bug by using the thing live, you fix it AND add a deterministic case so it can never come back. A real example from this repo: the agent didn't know the current time and asked for it before scheduling "in 30 minutes" → fixed in session.py, locked forever by test_working_memory.py. Run make gate → green → the eval history records the run.

Spend is permanent: every LLM call's tokens are appended to .waku/usage.jsonl — an append-only ledger that a demo reset never wipes. The Ops tab shows the all-time cost, tokens, and a per-day / per-provider breakdown (dollar cost is estimated from tokens, which are the ground truth). So the number you show on camera is your real running total, not a per-session guess.

Tracing is always on: every turn appends readable lines to .waku/traces/<date>.jsonl (zero setup) — a trace is just "what happened, in order." For span-waterfall views:

pip install -e '.[tracing]'
make trace                                            # Phoenix at localhost:6006
OTEL_EXPORTER_OTLP_ENDPOINT=http://localhost:4317 make run

Langfuse cloud speaks the same OTel toggle.

Connect it to your life

Voice, Telegram, Apple Calendar and Mail, Google Calendar, MCP servers — each one is opt-in, behind its own extra, and none of them change the loop. Setup for all of them: docs/integrations.md.

It manages its own memory

The agent has tools to keep itself useful — no black box: - manage_memory — correct or forget a fact when you say it's wrong. - update_soul — save a standing preference you give it (lives in SOUL.md). - create_skill — when you teach it a repeatable workflow, it offers to save it as a skill (written to .waku/skills/, live the same session).

You can also edit any of this by hand on the dashboard's Memory tab (edit/delete facts, rewrite SOUL.md) or in Settings (switch provider/model, paste keys — BYOK, kept in your local .env, never sent to the browser).

Add skills — yours or the community's

Skills are procedural memory: markdown instructions loaded only when relevant.

python -m waku skill install https://github.com/<someone>/<repo>/blob/main/skills/<skill>/SKILL.md

Contribute one — it's just a markdown file. Copy skills/TEMPLATE.md, PR it into skills/community/. CI validates the frontmatter. See CONTRIBUTING.md.

Every command

The waku command is installed with the package; the make targets are equivalent aliases.

Roadmap — the whiteboard boxes beyond the flagship task

These live in waku/tools/experimental.py, OFF by default — WAKU_EXPERIMENTAL=1 registers them.

Sub-Agents is now LIVE. delegate_task hands a coding job to pi — Mario Zechner's minimal open-source coding agent — through its headless print mode (pi -p "task"). Waku stays the orchestrator (memory, context, evals); pi is the specialist contractor (read/bash/edit/write). Try it:

npm install -g --ignore-scripts @earendil-works/pi-coding-agent
WAKU_EXPERIMENTAL=1 uv run waku
# "have pi fix the failing test in ~/my-project"

The full pi transcript lands in .waku/outbox/delegate-*.log; tune the budget with WAKU_DELEGATE_TIMEOUT (default 300s).

The rest are still deliberate skeletons — the intent is drawn so the diagram maps to something, but nothing is over-promised (they report "coming soon", and the dashboard's Tools tab lists them under Coming soon):

The point of a teaching repo is a readable core; these come alive one at a time, tested.

Upgrade paths (when you outgrow the defaults)

Related repos (the building blocks)

launch-rag · launch-agentic-rag · launch-agent-skills · launch-mcp-demo · launch-DeepResearch-Backend

Community

Star the repo, join the Discord, and grab a good first issue — that link is the live list, so it's always current. Gateways, memory backends and community skills are all shaped to be first PRs; the easiest needs no Python at all (see contributing a skill).

Comment on an issue before you start and it gets assigned to you, so two people never build the same thing.
