nexus-llm-router

Intelligent multi-LLM routing middleware with task-aware model selection, cost optimization, fallback safety, and a drop-in OpenAI-compatible API.

Why Nexus

Most teams start with one LLM endpoint. That works until traffic grows, latency starts swinging, finance asks why every request hits the most expensive model, and incident review asks why the app kept calling a degraded provider. Nexus gives the application one stable OpenAI-compatible API while moving model choice, fallback, budget, audit, and routing rationale into infra-owned middleware.

Nexus is designed for AI infrastructure engineers running multi-model production pipelines where quality, latency, and cost must be optimized at the same time.

Problems It Solves

• Issue: every prompt is sent to the same frontier model. Nexus solves this by classifying prompt complexity and routing simple tasks to cheaper low-latency models while reserving premium models for hard prompts.

• Issue: spend grows faster than product usage. Nexus solves this with cost-aware routing, model cost estimates, per-user budget guardrails, and Prometheus cost metrics.

• Issue: code, medical, legal, and general prompts need different quality defaults. Nexus solves this by extracting a domain tag and applying deterministic policy rules such as medical/legal to Claude Sonnet 4.6 and complex code to GPT-5.5.

• Issue: one provider has an incident and the app fails hard. Nexus solves this with per-provider circuit breakers and automatic fallback chains.

• Issue: provider latency spikes during peak traffic. Nexus solves this with latency-aware routing that tracks rolling p95 latency and penalizes slow providers.

• Issue: teams want to compare models without rewriting product code. Nexus solves this with stable request-id A/B routing selected by the X-Router-Strategy header.

• Issue: support and compliance teams ask why a model answered a request. Nexus solves this by persisting durable audit records with request_id, selected model, strategy, rationale, latency, token usage, and cost.

• Issue: a single API key can overwhelm the router. Nexus solves this with a token-bucket rate limiter keyed by API key identifier.

• Issue: session or tenant budgets need hard enforcement. Nexus solves this by rejecting requests before dispatch when estimated spend would exceed the configured cap.

• Issue: PII can leak into third-party providers. Nexus solves this with optional regex redaction and a Presidio extension path before provider dispatch.

• Issue: teams need OpenAI compatibility without giving up provider choice. Nexus solves this by exposing /v1/chat/completions while normalizing OpenAI, Anthropic, Gemini, and Moonshot adapters behind one interface.

• Issue: model routing becomes a hidden product decision. Nexus solves this by making routing policy explicit, testable, observable, and owned in infra.

Demo Gallery

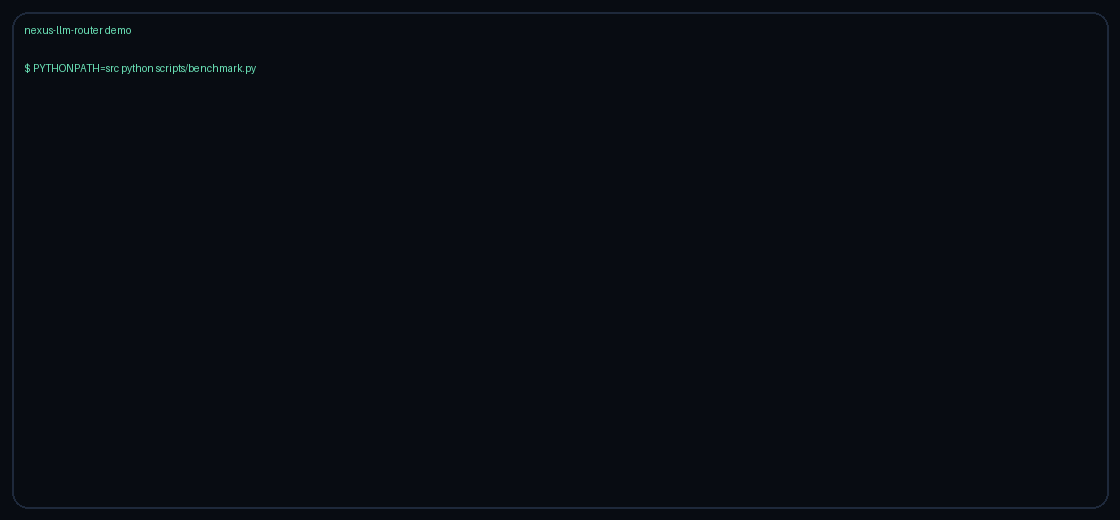

Terminal routing demo with JSON rationale logs:

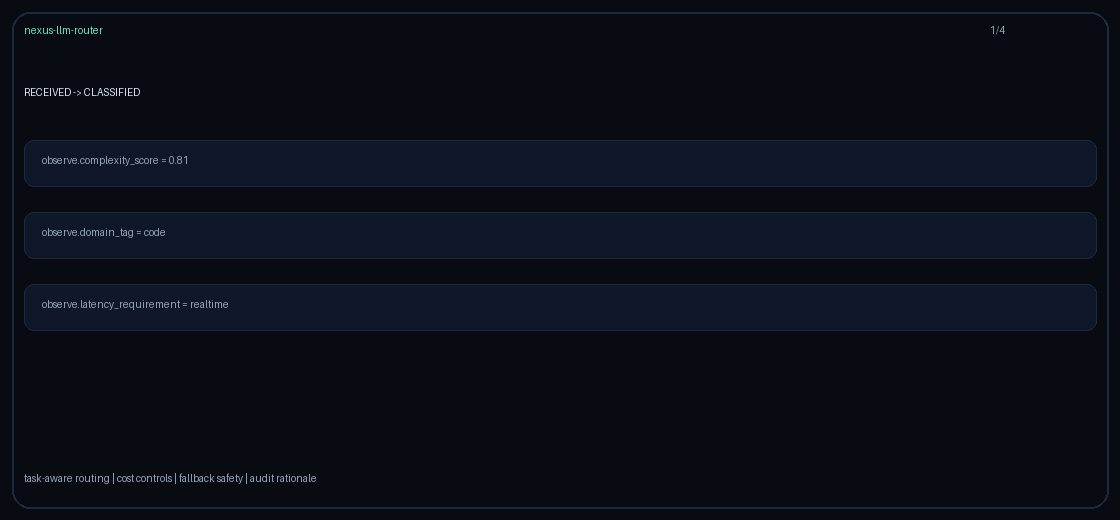

Observe -> Decide -> Act state-machine demo:

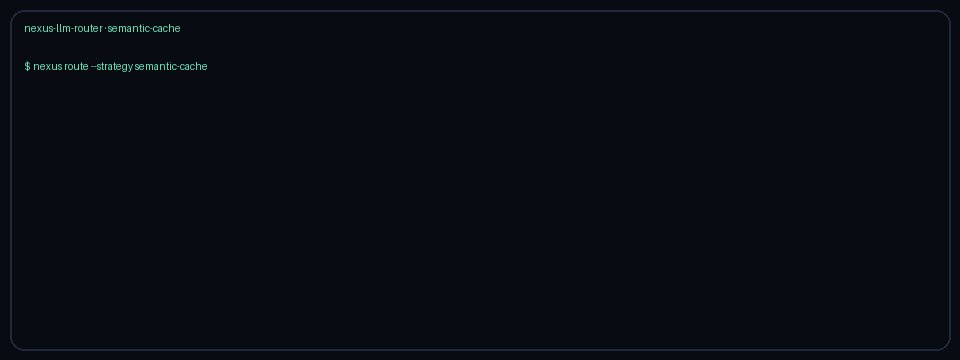

Prompt-prefix cache affinity demo:

Soft rate-limit avoidance demo:

Features

• Router engine with configurable strategies
• Adapter pipeline with full observability
• Async-first design using asyncio + httpx
• Type-safe with full mypy compliance
• Production-ready with Docker, CI/CD, and structured logging

Quick Start

git clone https://github.com/Francis1998/nexus-llm-router.git
cd nexus-llm-router
pip install -e ".[dev]"
cp .env.example .env
PYTHONPATH=src uvicorn api.main:app --reload

Quality Gates

ruff check src/ tests/ scripts/
mypy src/
pytest tests/ -v

Docker Compose

docker compose up --build

Services:

• Router: http://localhost:8000
• Prometheus: http://localhost:9090
• Grafana: http://localhost:3000

Routing Strategies

Select a strategy with X-Router-Strategy:

• rule-based: domain and complexity priority matrix
• classifier: logistic-regression-style complexity and domain features
• cost-optimal: minimizes estimated cost subject to quality floor
• latency-aware: penalizes providers with poor rolling p95 latency
• reliability-aware: routes to the highest-quality model whose provider circuit is closed, and orders the fallback chain healthy-providers-first
• weighted-blend: selects the model with the highest tunable composite of normalized quality, cost, and latency (weights via NEXUS_BLEND_*)
• budget-aware: selects the highest-quality model whose estimated per-request cost stays within a hard ceiling (NEXUS_REQUEST_COST_CEILING_USD); the dual of cost-optimal
• provider-family-cost-ceiling: selects the highest-quality domain-eligible model whose estimated cost stays within the ceiling for its provider family (openai / anthropic / google / moonshot); default via NEXUS_PROVIDER_FAMILY_COST_CEILING_USD, with cross-family fallback when nothing fits — OpenRouter/LiteLLM-style family budgets for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• sticky-session: consistent-hashes session_id onto one domain-eligible model, so every turn in a session routes to the same model (context/prompt-cache affinity) while distinct sessions spread across the pool
• sticky-tenant-hash: consistent-hashes metadata.tenant_id (then user_id / sticky_key fallbacks) onto one domain-eligible model per tenant with healthy ring failover — distinct from sticky-session, which pins only session_id for conversational affinity across GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic
• value: selects the model with the best quality-per-dollar ratio, maximizing spend efficiency with no threshold to tune
• canary: rolls a configurable traffic fraction (NEXUS_CANARY_WEIGHT) onto a canary model (NEXUS_CANARY_MODEL) while the rest stays on a stable model (NEXUS_CANARY_STABLE_MODEL); health-gated, so a canary whose provider circuit is open is paused and all traffic falls back to the stable model
• canary-tier-blend: blends canary traffic with complexity-tier affinity — on the canary slice prefer the canary when it matches the inferred tier, else canary; off-slice or when unhealthy prefer tier match, else highest quality (NEXUS_CANARY_*)
• shadow-traffic-mirror: cost-optimal primary routing (NEXUS_QUALITY_FLOOR) with a deterministic request_id slice (NEXUS_SHADOW_TRAFFIC_PERCENT, default 5) that annotates a shadow mirror model from a different provider for dual-run telemetry — LiteLLM/OpenRouter-style shadow comparison without changing the returned primary
• canary-cost-blend: blends cost exploration with healthy-provider minimization — default picks the cheapest healthy model, while NEXUS_CANARY_COST_BLEND_PERCENT (default 10) explores the next-cheaper healthy tier via deterministic request_id hashing; distinct from canary-tier-blend
• token-cost-anomaly-shed: sheds to cheaper healthy models when the top quality pick's projected cost/1k exceeds the rolling mean times NEXUS_TOKEN_COST_ANOMALY_RATIO (default 2.0); falls back to quality ranking when no cheaper healthy option exists — LiteLLM/OpenRouter-style spend spike guardrails for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• multi-region-latency-hedge: stays on highest-quality primary-region models but hedges to the lowest-p50 secondary-region candidate when the primary provider p50 exceeds NEXUS_LATENCY_HEDGE_MS (default 500) — regional latency escape hatch for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• adaptive-timeout-hedge: keeps the highest-quality eligible model unless its rolling provider p95 exceeds the fastest observed eligible p95 by NEXUS_ADAPTIVE_TIMEOUT_HEDGE_RATIO (default 1.5), then hedges to the fastest observed alternative for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• token-bucket-tenant: maintains independent tenant request-token buckets (NEXUS_TOKEN_BUCKET_TENANT_RATE, default 5/s); in-budget requests keep quality-first routing while over-budget requests shed to the cheapest domain-eligible GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 model
• region-carbon-blend: blends regional carbon intensity with rolling provider p95 latency via NEXUS_REGION_CARBON_BLEND_WEIGHT (default 0.5; 0 = latency only, 1 = carbon only) for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• provider-weight-decay: exponentially decays provider selection weight after failures (NEXUS_PROVIDER_WEIGHT_DECAY_FACTOR, default 0.5) and recovers slowly on success (NEXUS_PROVIDER_WEIGHT_RECOVER, default 0.1) for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• retry-after-respect: skips providers still inside a Retry-After cooldown (NEXUS_RETRY_AFTER_DEFAULT_SECONDS, default 30) and falls back to the next healthy provider for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• latency-slope-shed: sheds the quality leader when its EWMA latency slope exceeds NEXUS_LATENCY_SLOPE_THRESHOLD_MS (default 25 ms/step; window via NEXUS_LATENCY_SLOPE_WINDOW, default 10) to a lower-latency / cheaper healthy model for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• latency-budget: selects the highest-quality model whose provider rolling p95 latency stays within a hard SLA (NEXUS_LATENCY_SLA_MS); the latency-domain dual of budget-aware, trading quality for speed only when the SLA requires it
• prompt-length-tier-shed: sheds frontier-tier models when prompt_tokens_estimate exceeds NEXUS_PROMPT_LENGTH_TIER_TOKENS (default 8000) and picks the best mid/economy alternative; short prompts keep pure quality ranking — LiteLLM/OpenRouter-style length tier shedding for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• retry-budget-aware-failover: prefers highest-quality healthy models while metadata.retry_remaining (or NEXUS_RETRY_BUDGET_DEFAULT, default 3) is > 1, then failovers to lowest-latency healthy model on the last attempt — LiteLLM/OpenRouter-style retry-budget routing for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• cache-hit-sticky-warm-pool: consistent-hashes a long prompt prefix (min NEXUS_CACHE_HIT_STICKY_MIN_CHARS, default 64) onto one domain-eligible model with healthy ring failover so provider prompt caches stay warm across GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic
• embedding-cache-key-namespace: consistent-hashes {NEXUS_EMBEDDING_CACHE_NAMESPACE_PREFIX}:{tenant} (default prefix embed) onto one domain-eligible model with healthy ring failover so embedding/cache keys stay isolated across tenants for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic
• carbon-aware-preference: prefers lower carbon-intensity providers under NEXUS_CARBON_AWARE_MAX_INTENSITY (default 400) for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• tenant-concurrency-lease: prefers providers with remaining per-tenant in-flight headroom (NEXUS_TENANT_CONCURRENCY_LEASE, default 8) using InflightStats keyed by tenant/session — LiteLLM/Portkey-style tenant fairness for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• provider-error-budget-shed: prefers healthy domain-eligible providers whose rolling SuccessStats error rate stays under NEXUS_PROVIDER_ERROR_BUDGET_RATE (default 0.15); when every provider is over budget it falls back to lowest error rate, then quality, for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic
• region-latency-p99-shed: prefers region-matching domain-eligible providers whose rolling LatencyStats p99 stays under NEXUS_REGION_LATENCY_P99_MS (default 3000); when every regional provider is hot it falls back to lowest p99, then quality — LiteLLM/OpenRouter-style regional tail shedding for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• sticky-canary-cost: pins tenants via consistent hashing on metadata.tenant_id (with user/session fallbacks) and blends a deterministic request_id explore slice (NEXUS_STICKY_CANARY_COST_PERCENT, default 10) toward cheaper healthy models while keeping sticky affinity off-slice — LiteLLM/Portkey-style sticky cost canaries for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• queue-depth-fairness: prefers domain-eligible providers whose live InflightStats queue depth stays under NEXUS_QUEUE_DEPTH_SOFT_CAP (default 4); when every provider is saturated it falls back to lowest depth, then quality — LiteLLM/Portkey-style queue fairness for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• provider-quota-fair-share: tracks the last NEXUS_PROVIDER_QUOTA_LOOKBACK selections (default 100) and prefers eligible providers below equal request share, shedding over-share providers while preserving quality/cost tie-breaks for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• provider-spend-telemetry: prefers lower-spend providers once soft USD spend telemetry exceeds NEXUS_PROVIDER_SPEND_SOFT_USD (default 10) for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 fleets
• semantic-cache-ttl-affinity: pins cacheable requests to providers with warm TTL under NEXUS_SEMANTIC_CACHE_TTL_SECONDS (default 300) for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• circuit-breaker-half-open-probe: prefers healthy closed providers and allows only limited concurrent probes into half-open/recovering providers (NEXUS_CIRCUIT_HALF_OPEN_PROBE_BUDGET, default 2) — LiteLLM/Portkey-style half-open probe budgeting for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• latency-slo-shed: sheds providers whose rolling p95 exceeds NEXUS_LATENCY_SLO_MS (default 2000) when faster alternatives exist; prefers highest quality among under-SLO candidates and falls back to lowest latency when every provider is hot — LiteLLM/OpenRouter-style latency SLO shedding for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• adaptive-timeout: selects the highest-quality model whose risk-adjusted provider p95 fits an adaptive timeout budget derived from request urgency, recent latency, and success/error signals; prefers faster models under realtime pressure and allows slower higher-quality models when comfortable
• complexity-tier: treats the classifier complexity score as a required quality target and picks the cheapest model meeting it — a catalog-adaptive quality-for-cost escalation ladder with no thresholds to tune (falls back to the top-quality model when the target is unreachable)
• round-robin: load-balances across every provider offering a domain-eligible model (routing each to that provider's best eligible model), spreading rate-limit pressure instead of converging on one provider; balanced by a stable request_id hash so routing stays deterministic and replayable
• cascade: routes the primary attempt to the cheapest domain-eligible model and orders the fallback chain by ascending cost, so a failure escalates one price/capability rung at a time instead of jumping to the top-quality model — minimizing expected spend on the common first-attempt-succeeds path with no thresholds to tune
• epsilon-greedy: with probability NEXUS_EPSILON explores by picking uniformly among domain-eligible models (stable second hash of request_id); otherwise exploits the highest-quality eligible model — a replayable bandit policy so under-prioritized catalog entries still get live traffic
• adaptive-exploration: like epsilon-greedy, but epsilon decays from NEXUS_ADAPTIVE_EXPLORATION_BASE (default 0.2) toward NEXUS_ADAPTIVE_EXPLORATION_MIN (default 0.02) as SuccessStats total successes grow — explore more while cold, exploit more as GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic proves out
• geo-region: prefers models whose supported_regions include the request region (GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 catalog priors)
• region-tier-affinity: prefers models matching both request geo region and complexity-mapped tier (frontier/mid/economy), then tier, then region, then quality — no extra NEXUS_* knobs
• soft-family-budget: deprioritizes provider families whose rolling observed spend exceeds a soft budget (NEXUS_SOFT_FAMILY_BUDGET_USD, window via NEXUS_SOFT_FAMILY_BUDGET_WINDOW_SECONDS); prefers highest-quality models from under-budget families and falls back to the cheapest other family when every family is hot — OpenRouter/LiteLLM-style family spend steering for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• sticky-region-failover: pins session_id to a model inside the first healthy preferred region (request region first, then NEXUS_STICKY_REGION_FAILOVER_PREFERENCES), failovers to the next region when the preferred pool is unhealthy, and keeps sticky affinity when healthy — geo-residency plus session stickiness for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• region-failover-hysteresis: like sticky-region-failover but waits for NEXUS_REGION_FAILOVER_HYSTERESIS_SUCCESSES (default 3) consecutive preferred-region successes before flapping back after a failover for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• token-budget: selects the highest-quality domain-eligible model whose context_window fits prompt_tokens_estimate + max_tokens within the request token_budget; falls back to the largest-context model when nothing fits
• slo-aware: selects the highest-quality domain-eligible model whose provider rolling success rate meets NEXUS_AVAILABILITY_SLO; falls back to the highest success-rate model when nothing meets the SLO
• semantic-cache: on metadata.cache_hit, prefers the cheapest domain-eligible model; on miss, falls through to cost-optimal under the quality floor
• least-busy: selects the highest-quality domain-eligible model on the provider with the lowest current in-flight load; load ties prefer higher quality, then lower estimated cost
• prompt-prefix-cache: hashes long shared system-prompt prefixes to sticky provider/model buckets, improving OpenRouter/LiteLLM-style KV-cache affinity for GPT-5.5, Claude Sonnet 4.6, Gemini 2.5, and Kimi K2; short prefixes fall back to cost-optimal
• concurrency-cap: skips providers whose live in-flight count is at or above NEXUS_CONCURRENCY_CAP, then selects the highest-quality remaining model for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic
• prompt-prefix-cache: hashes long shared system-prompt prefixes to sticky provider/model buckets, improving OpenRouter/LiteLLM-style KV-cache affinity for GPT-5.5, Claude Sonnet 4.6, Gemini 3.x, and Kimi K2; short prefixes fall back to cost-optimal
• soft-rate-limit: prefers healthy providers with fewer recent 429/rate-limit observations, so GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic backs away from quota pressure before hard circuit breakers trip
• cost-latency-pareto: keeps non-dominated cost/latency candidates (Pareto front on estimated spend and rolling provider p95), then breaks ties by quality — LiteLLM/Portkey-style multi-objective routing across GPT-5.5, Claude Sonnet 4.6, Gemini 3.x, and Kimi K2
• token-bucket-burst: maintains per-provider token buckets (NEXUS_TOKEN_BUCKET_CAPACITY, NEXUS_TOKEN_BUCKET_REFILL_PER_SEC) and prefers providers with burst quota for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic; when every bucket is empty it falls back to the highest remaining fraction, then cost
• model-tier-rate-limit: infers frontier/mid/economy tiers from model names and applies tier-specific soft RPM ceilings per provider (NEXUS_TIER_FRONTIER_RPM, NEXUS_TIER_MID_RPM, NEXUS_TIER_ECONOMY_RPM); prefers providers under their tier limit for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic and falls back to the least-saturated provider
• failover-priority: walks an explicit ordered model preference list and picks the first healthy provider (LiteLLM-style ordered failover)
• provider-health-score-blend: blends circuit availability, rolling success rate, inverse p95 latency, model quality, and inverse estimated cost; open circuits are skipped whenever a healthy provider exists (NEXUS_HEALTH_BLEND_*)
• health-cost-latency: ternary blend of rolling provider success rate, inverse estimated cost, and inverse p95 latency for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2 traffic (NEXUS_HCL_*)
• provider-hourly-cost-ceiling: skips providers whose rolling hourly estimated spend exceeds NEXUS_PROVIDER_HOURLY_COST_CEILING_USD (default 5.0), preferring highest quality under ceiling — distinct from provider-family-cost-ceiling for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• quality-weighted-sticky: sticky-session hashing with hash-ring bucket weights proportional to quality_score (higher quality gets larger sticky share) — distinct from uniform sticky-session and sticky-tenant-hash for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• token-rpm-ceiling, provider-circuit-probe, carbon-latency-blend: tracks estimated prompt tokens per provider over a rolling 60-second window and sheds requests that would exceed NEXUS_TOKEN_RPM_CEILING (default 100000) to the next eligible provider for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• adaptive-concurrency-cap: scales per-provider in-flight caps by rolling success rate and inverse p95 latency (NEXUS_ADAPTIVE_CONCURRENCY_BASE_CAP, NEXUS_ADAPTIVE_CONCURRENCY_MIN_CAP, NEXUS_ADAPTIVE_CONCURRENCY_LATENCY_MS) so unhealthy backends shed load while quality-first routing continues for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• provider-token-fair-share: fair-share prompt-token budget per provider in a rolling 60-second window (NEXUS_PROVIDER_TOKEN_FAIR_SHARE_CEILING, default 100000) with round-robin weighted by remaining quota for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• tenant-budget-cascade: tracks per-tenant rolling spend, keeps quality-first choices while projected spend fits NEXUS_TENANT_BUDGET_CASCADE_SOFT, sheds to cheaper providers up to NEXUS_TENANT_BUDGET_CASCADE_HARD, then fails closed with a clear rationale for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• provider-error-budget-reset: temporarily sheds providers above NEXUS_PROVIDER_ERROR_BUDGET_RESET_FRACTION and automatically restores them after NEXUS_PROVIDER_ERROR_BUDGET_RESET_SECONDS, distinct from cumulative provider-error-budget-shed, for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• sticky-region-warmup: sends each new session's first NEXUS_STICKY_REGION_WARMUP_REQUESTS requests to a warmup region, then pins the session to its requested or hash-selected region to prevent cold-start flaps for GPT-5.5 / Claude Sonnet 4.6 / Gemini 3.x / Kimi K2
• ab: deterministic request-id buckets across two model arms

Documentation

License

Apache-2.0 © Francis1998

Last updated: 2026-08-01
