kube-llmops

English | 中文 | 🌐 Project Site

[!NOTE] v1.0.0 released -- the v1.0 trio is complete: Operator (LLMPlatform / ModelDeployment / FineTuneRun CRDs) + kubectl-llmops CLI (15+ commands, kubectl llmops <cmd>) + Headlamp Dashboard (Kubernetes UI + kube-llmops-portal plugin). See CHANGELOG for details.

What is kube-llmops?

kube-llmops is an opinionated, batteries-included Helm chart that deploys a complete LLM operations stack on Kubernetes:

• Model Serving -- vLLM, llama.cpp, or TEI, auto-selected based on model format (engine auto-detection from source name)
• CLI (kubectl-llmops) -- kubectl plugin with 15+ imperative commands: deploy, list, status, scale, canary, logs, test, port-forward, finetune, rag, platform, migrate, ...
• AI Gateway -- LiteLLM for unified OpenAI-compatible API, key management, rate limiting, budget control
• Observability -- Prometheus + Grafana (11 dashboards + 8 alert rules) + Langfuse v3 LLM tracing + node-exporter + kube-state-metrics
• Logging -- Fluent Bit + Loki, queryable in Grafana Explore
• Autoscaling -- KEDA scales vLLM pods based on queue depth, TTFT P95, and TPOT P95; supports scale-to-zero with fallback
• Security -- Keycloak SSO for Grafana/Langfuse, LLM-Guard prompt injection defense, NetworkPolicy isolation
• RAG Infrastructure -- Dify platform + pgvector + TEI embedding/reranking + Ragas evaluation + quality gate
• Fine-tuning -- LLaMA-Factory LoRA/QLoRA/Full fine-tuning with Argo Workflows pipeline + MLflow tracking
• Model Distribution -- MinIO model cache + HuggingFace fallback + hf-transfer multi-threaded downloads
• Storage -- MinIO S3-compatible model storage, PVC model cache

# Install from local source (recommended)
helm install kube-llmops charts/kube-llmops-stack -f values-minimal.yaml

Use Cases

• "I want to deploy DeepSeek-R1-0528 and let 5 teams share it with token budget limits"
• "I want to see which team burned the most GPU hours this month"
• "I want a GGUF model on llama.cpp and a full-precision model on vLLM behind the same API"
• "I want every LLM request traced with full prompt, tokens, cost, and latency"

Architecture

See ARCHITECTURE.md for the full technical design.

Screenshots

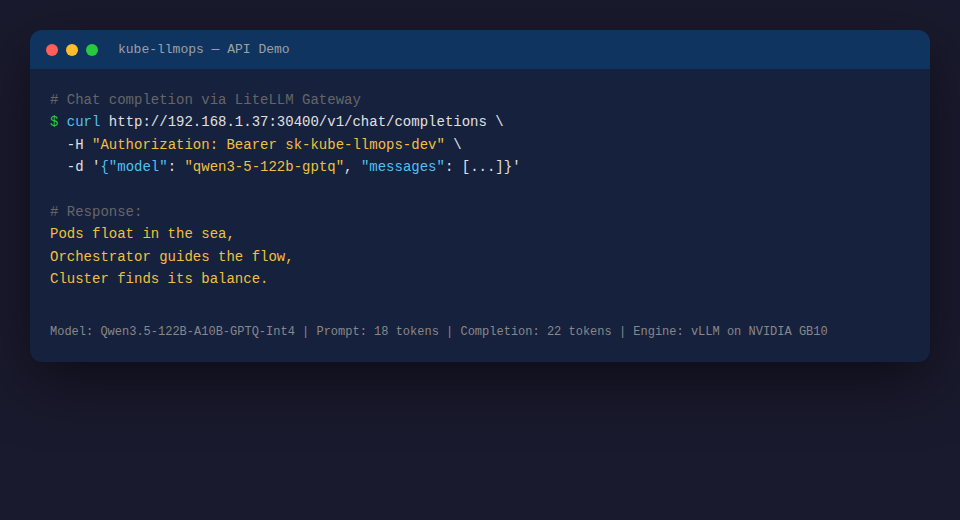

API Demo	Grafana Dashboards

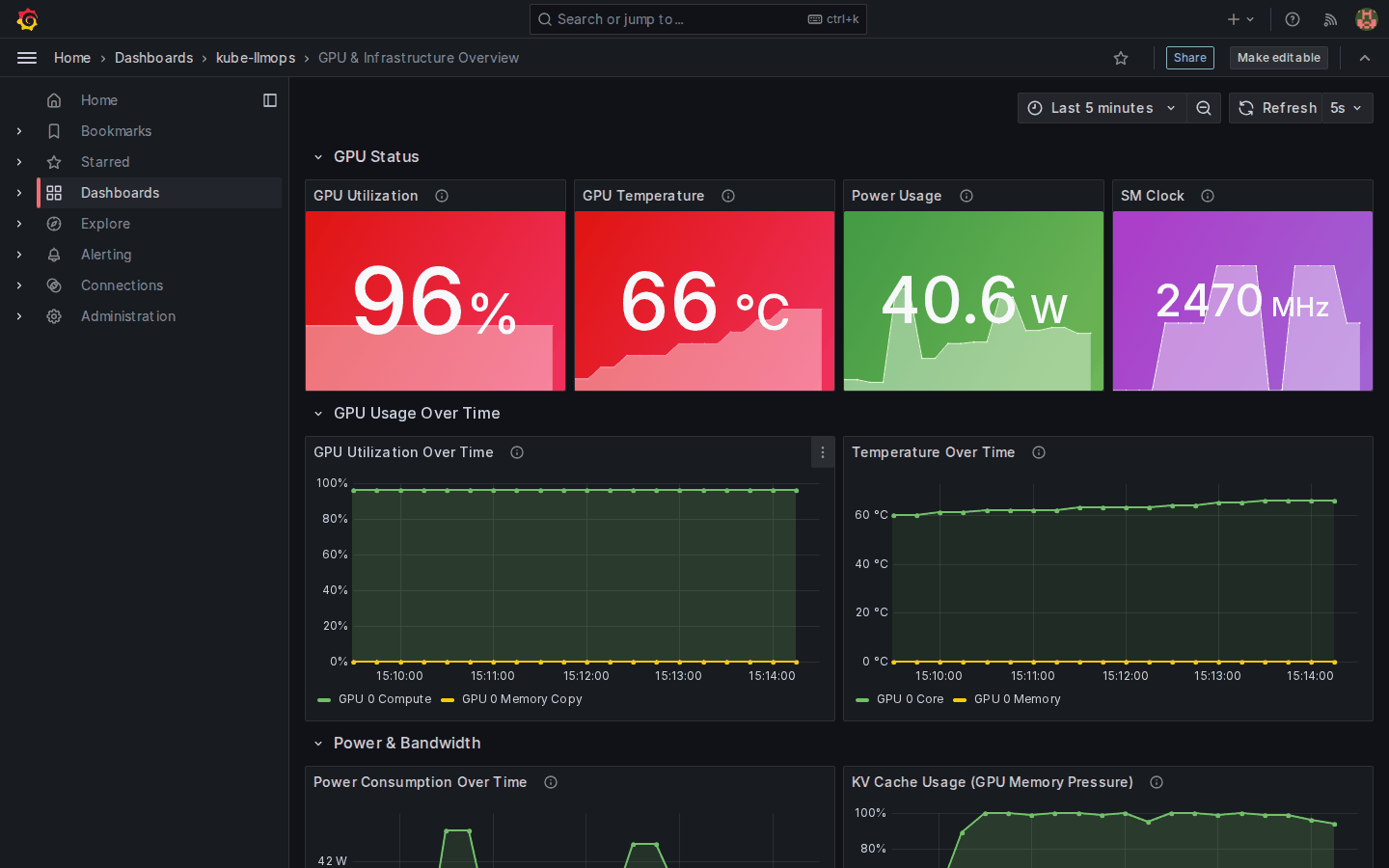

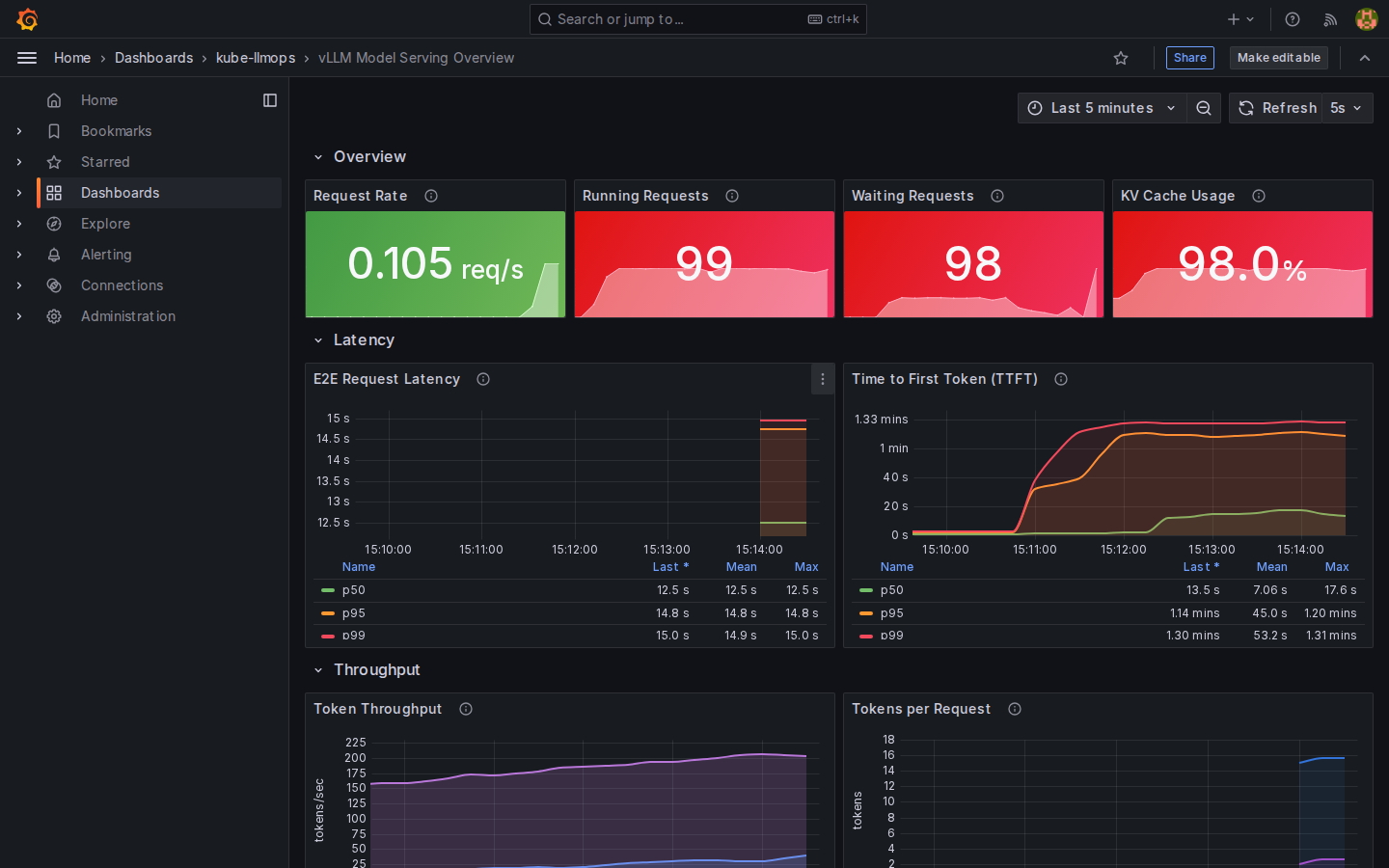

GPU Monitoring (DCGM)	vLLM Model Serving

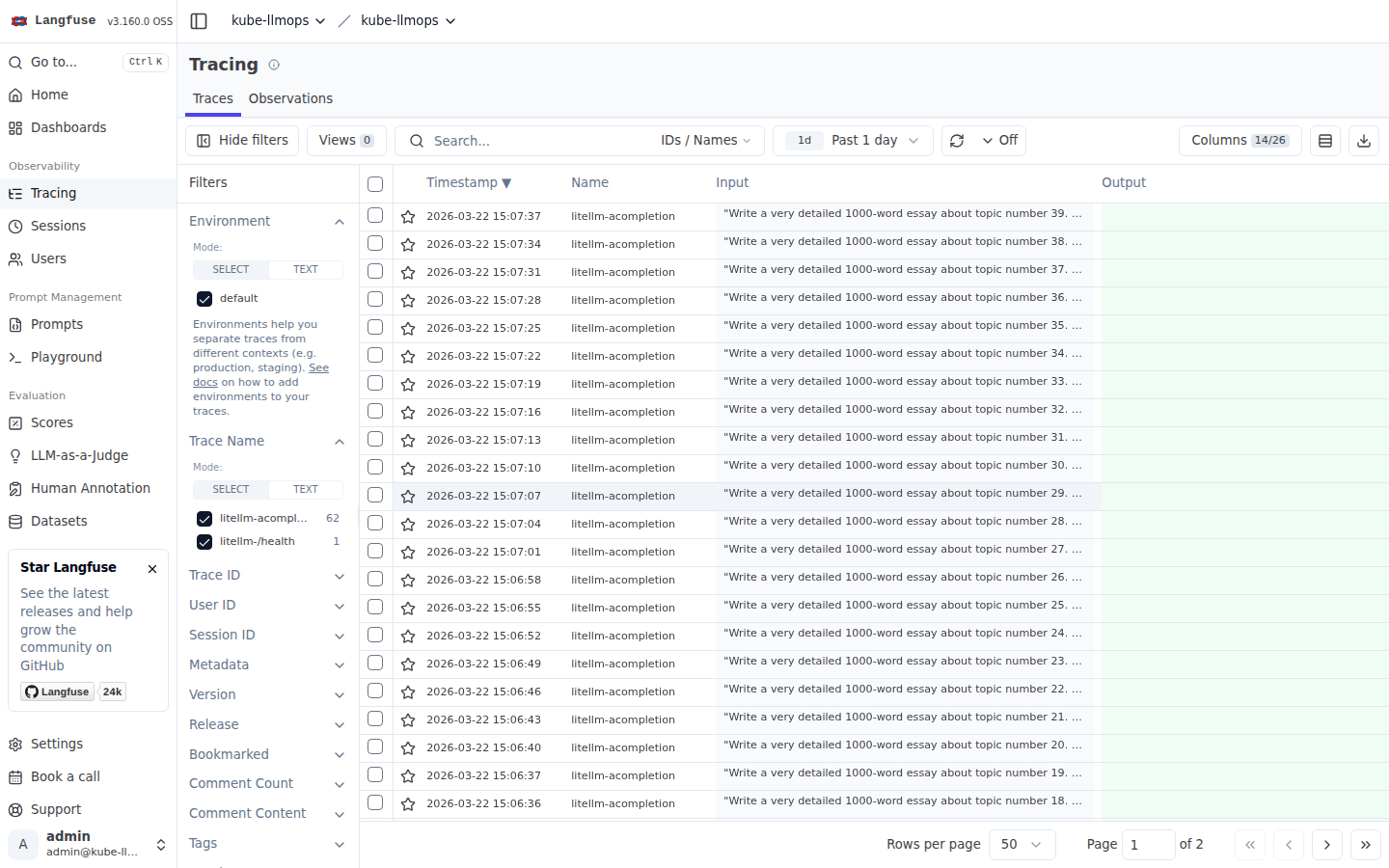

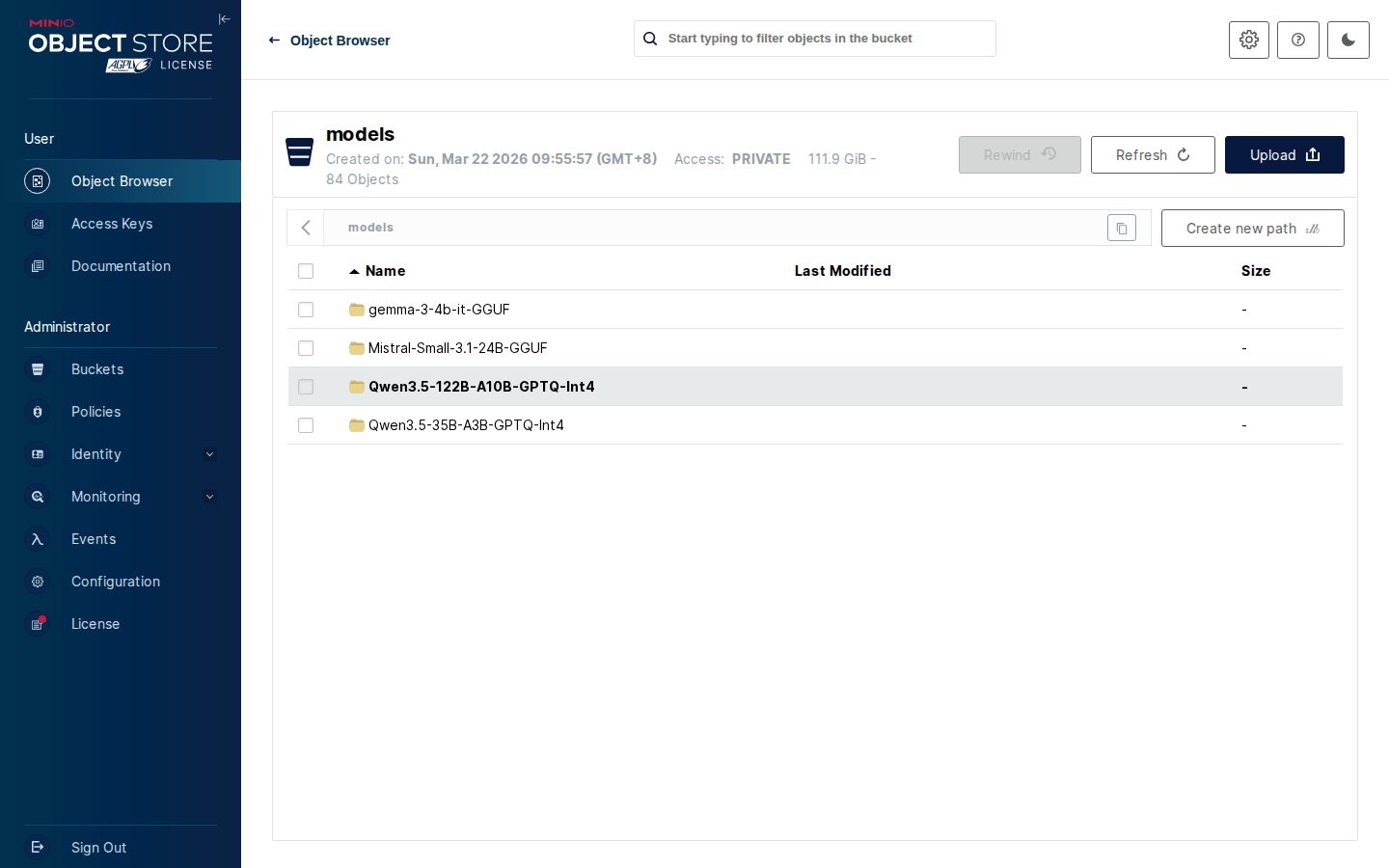

Langfuse LLM Tracing	MinIO Model Storage

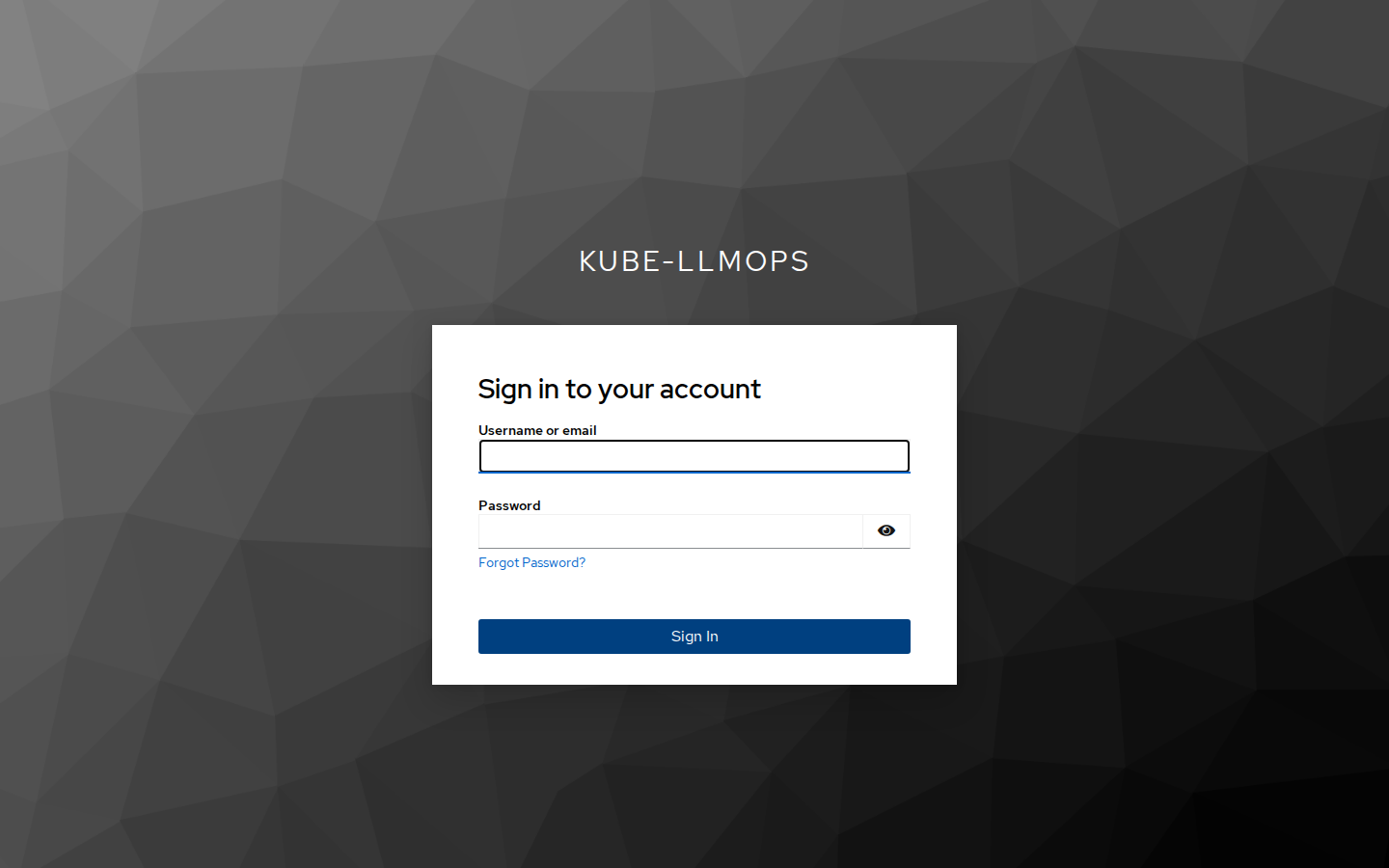

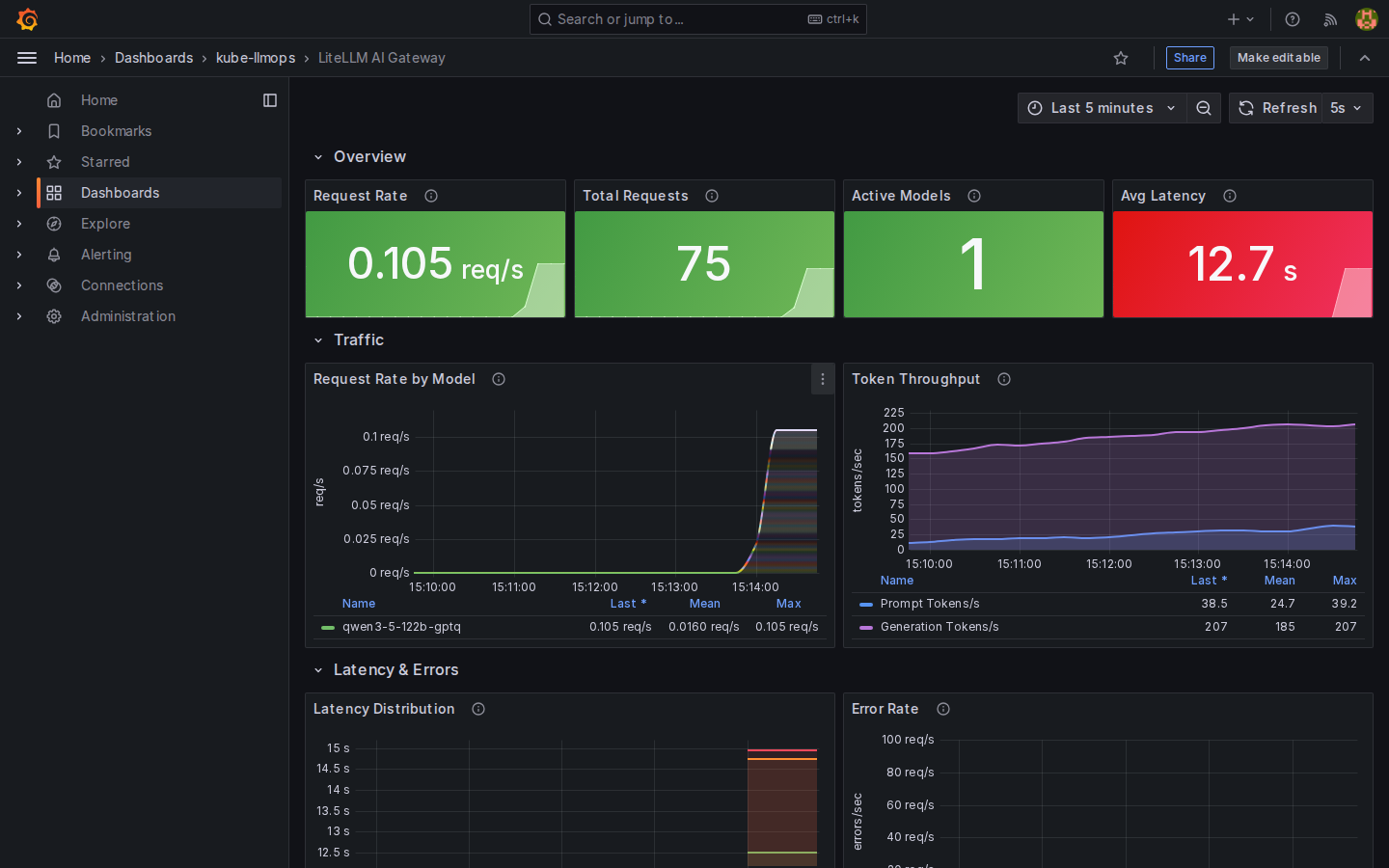

Keycloak SSO	LiteLLM Gateway

Quick Start

Prerequisites

• Kubernetes cluster (1.28+) with GPU node, or kind for CPU-only demo
• Helm 3.x
• kubectl

Install

# Install from local source
helm install kube-llmops charts/kube-llmops-stack \
  -f charts/kube-llmops-stack/values-single-node.yaml \
  --set global.nodePort.enabled=true \
  --set global.nodePort.host=$NODE_IP

# Or install with ingress
helm install kube-llmops charts/kube-llmops-stack \
  -f values-minimal.yaml \
  --set ingress.enabled=true \
  --set ingress.host=llmops.local

# Or: CPU-only demo (no GPU required)
helm install kube-llmops charts/kube-llmops-stack -f values-ci.yaml

Chat with your model

curl http://litellm.llmops.local/v1/chat/completions \
  -H "Authorization: Bearer sk-kube-llmops-dev" \
  -H "Content-Type: application/json" \
  -d '{"model":"qwen2-5-0-5b","messages":[{"role":"user","content":"Hello!"}]}'

Access the UIs

Option A: Ingress (recommended — no port-forward needed)

# Enable ingress during install
helm install kube-llmops charts/kube-llmops-stack \
  -f values-minimal.yaml \
  --set ingress.enabled=true \
  --set ingress.host=llmops.local    # or your real domain

# If no real domain, add to /etc/hosts:
NODE_IP=$(kubectl get node -o jsonpath='{.items[0].status.addresses[0].address}')
echo "$NODE_IP litellm.llmops.local grafana.llmops.local langfuse.llmops.local keycloak.llmops.local minio.llmops.local prometheus.llmops.local" | sudo tee -a /etc/hosts

Option B: Port-forward (fallback)

kubectl port-forward svc/kube-llmops-litellm 4000:4000 &
kubectl port-forward svc/kube-llmops-grafana 3000:3000 &
kubectl port-forward svc/kube-llmops-langfuse 3001:3000 &

[!TIP] When SSO is enabled, use Keycloak credentials (admin / admin123!) to log in to Grafana, Langfuse, and MinIO. The Keycloak user email ([email protected]) matches the Langfuse init user, so SSO login automatically sees existing projects and traces.

[!WARNING] These are development defaults. For production, override via --set: bash helm install kube-llmops charts/kube-llmops-stack \ --set litellm.masterKey=sk-your-secret-key \ --set observability.grafana.adminPassword=your-grafana-pw \ --set langfuse.init.userPassword=your-langfuse-pw \ --set langfuse.externalUrl=https://langfuse.your-domain.com

Features

Deployment Profiles

Documentation

• Getting Started -- Installation, configuration, troubleshooting
• Architecture -- Full technical design and technology choices
• Changelog -- Release notes
• Contributing -- How to contribute
• RAG Infrastructure -- RAG components, evaluation, and safety
• ADR -- Architecture Decision Records

Roadmap

• [x] v0.1.0 (MVP) -- Model serving + Gateway + Metrics + Tracing
• [x] v0.2.0 -- Langfuse v3 + Keycloak SSO + Infra automation + NodePort
• [x] v0.3.0 -- RAG infra (Dify + pgvector + TEI embedding/reranking + Ragas eval + LLM-Guard + Quality Gate)
• [x] v0.4.0 -- Fine-tuning pipeline (LLaMA-Factory + Argo Workflows + MLflow) + JupyterHub + Terraform
• [x] v0.5.0 -- Advanced Inference (latency routing, prefix caching, multi-trigger KEDA, scale-to-zero, canary, llm-d, multi-accelerator)
• [x] v1.0.0 (current) -- Operator + kubectl-llmops CLI (15+ commands) + Headlamp Dashboard

License

Apache License 2.0

License Notice

This project is Apache 2.0 licensed. However, some optional dependencies have different licenses:

If AGPL is a concern for your organization, Grafana and Loki can be disabled and replaced with your own visualization and log storage solutions.

Contributing

Contributions welcome! See CONTRIBUTING.md for guidelines.
