GoNavi

Navigate every data source — native speed, agent-ready, zero Electron bloat.

A high-performance cross-platform database client built with Wails (Go) + React. Desktop-first. MCP-ready. ~30MB class binaries.

Language: English · 简体中文  ·  🌐 Website · ⬇ Download · ⚡ Quick Start · ✨ Features · 🤖 MCP

_{Sponsored by 华龙中转站 / Hualong Transfer Station}

Why GoNavi?

Most database GUIs are Electron shells with megabytes of tax. GoNavi takes a different path:

One cockpit for MySQL, Postgres, Redis, Kafka, Milvus, OceanBase, ClickHouse…
Query, edit, audit, sync — and hand structured context to coding agents without leaking passwords off-host.

At a Glance

┌──────────────────────────────────────────────────────────────────────┐
│  GoNavi Workbench                                                    │
│  ┌─────────────┐  ┌──────────────────┐  ┌─────────────────────────┐  │
│  │ Connections │  │ Monaco SQL + AI  │  │ Virtualized DataGrid    │  │
│  │ SSH / Proxy │  │ Schema context   │  │ Batch edit · Export     │  │
│  │ Drivers     │  │ Slash commands   │  │ Txn submit / rollback   │  │
│  └─────────────┘  └────────┬─────────┘  └─────────────────────────┘  │
│                            │                                         │
│              ┌─────────────▼─────────────┐                           │
│              │  Go core · Audit · Sync   │                           │
│              │  MCP HTTP · Web Server    │                           │
│              └───────────────────────────┘                           │
└──────────────────────────────────────────────────────────────────────┘

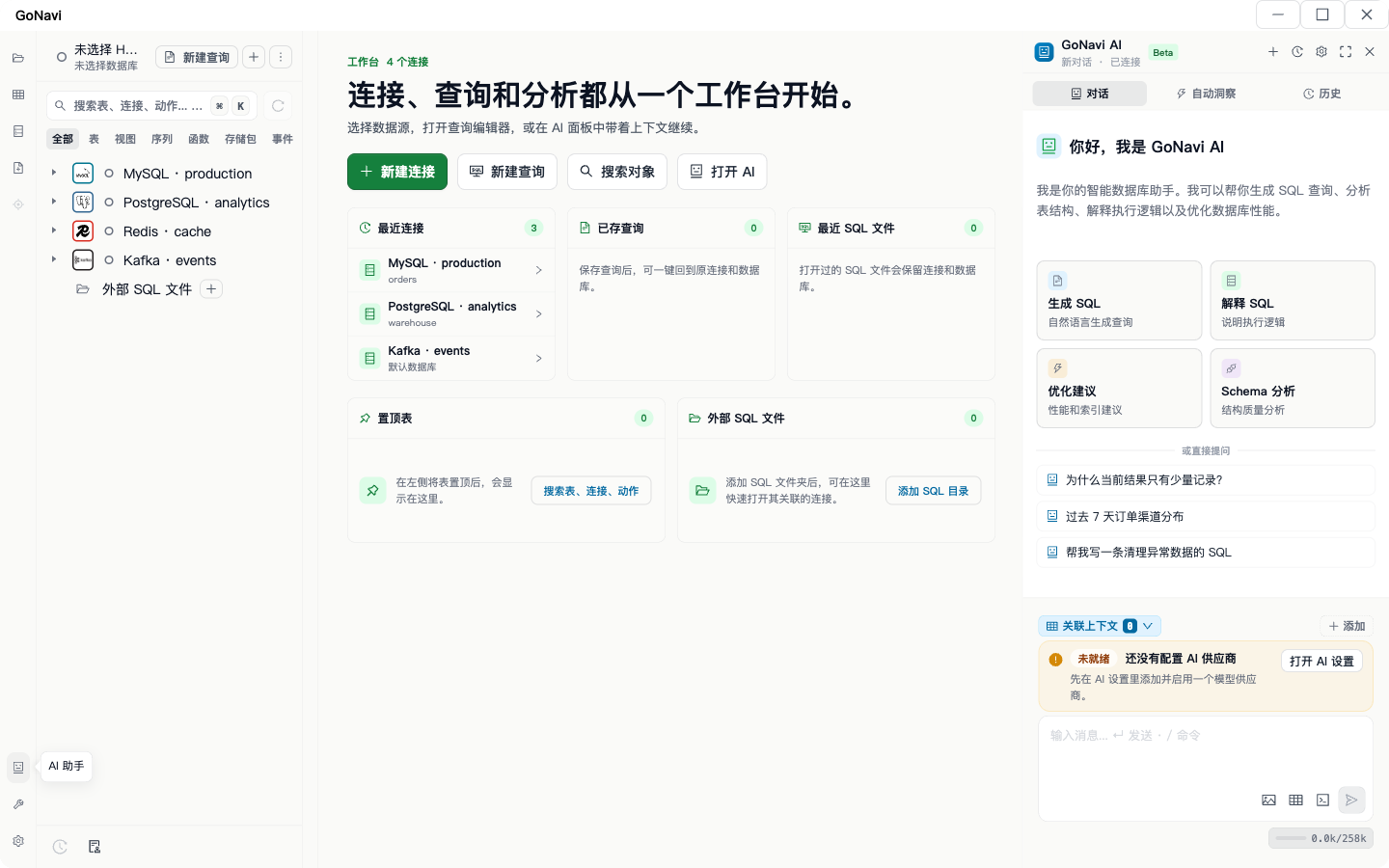

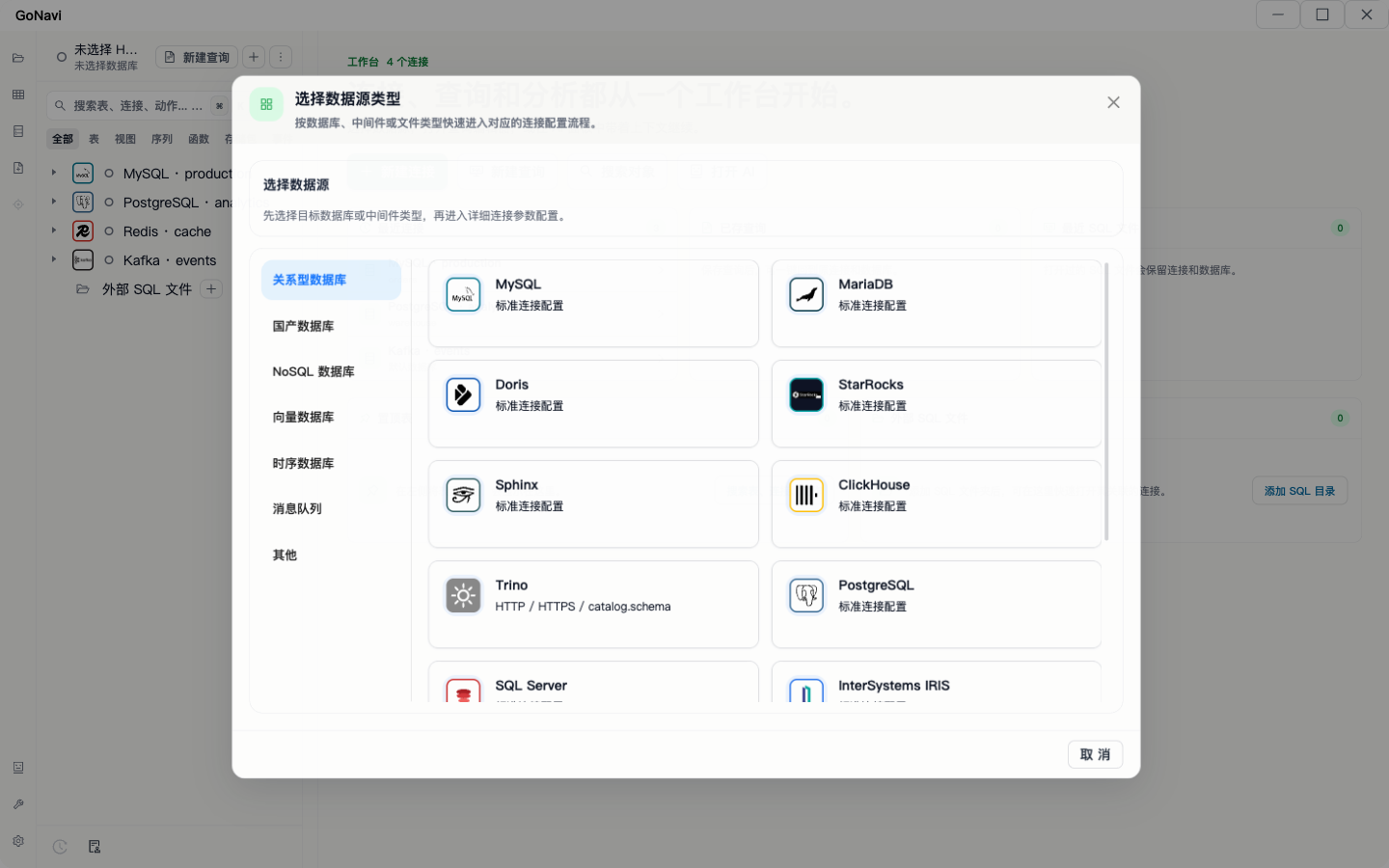

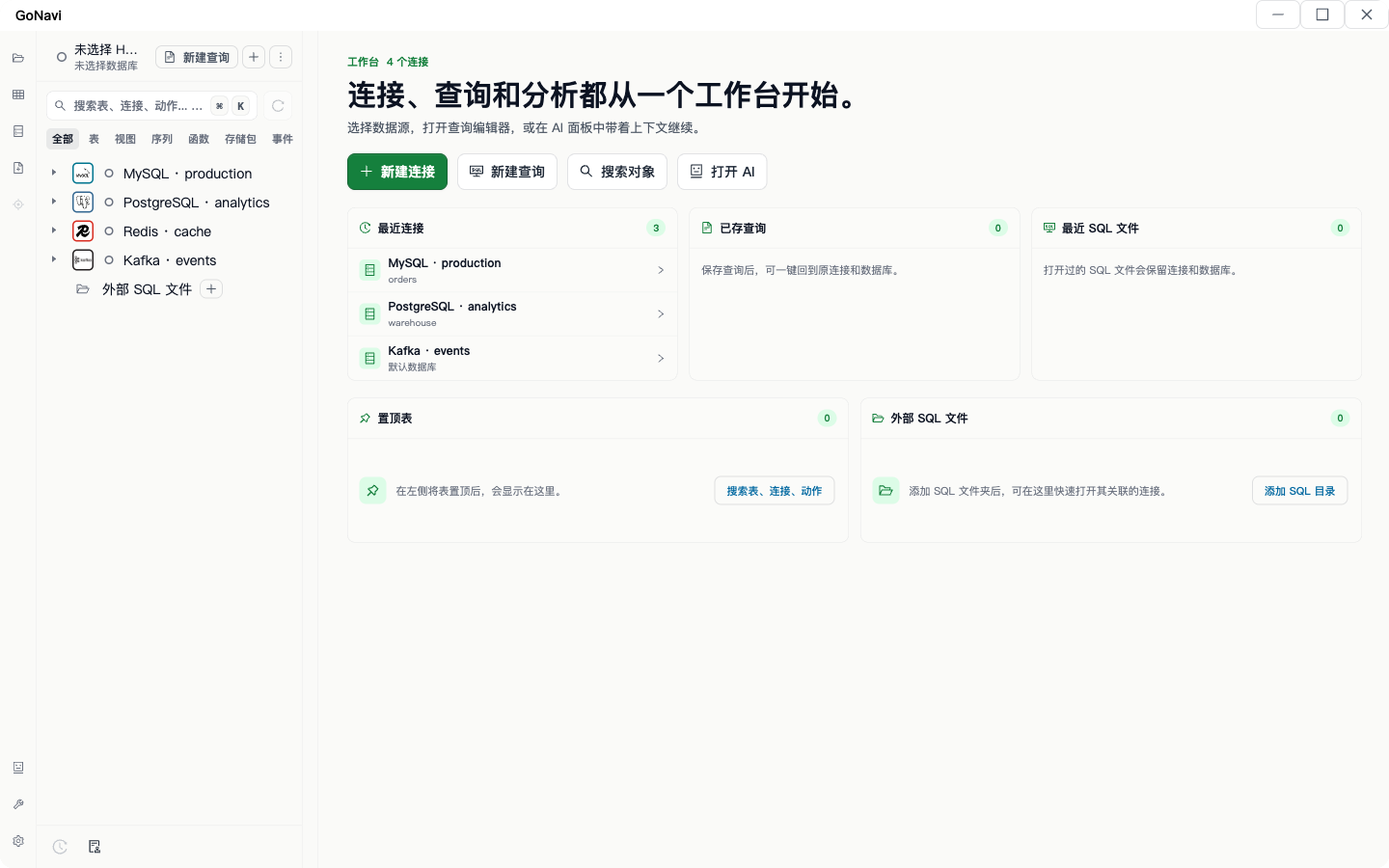

Product screenshots

Each image is a full GoNavi application window, scaled proportionally for README display.

_{Real desktop captures · full window}

✨ Key Features

🧩 Stack

Go 1.24 · Wails v2 · React 18 · TypeScript · Vite · Ant Design 5 · Zustand · Monaco

🗄 Supported Data Sources

Built-in — ready out of the box · Optional agent — install via Driver Manager

Elasticsearch REST console

Elasticsearch connections reuse the query workspace as a version-aware REST console:

• Write Dev Tools-style METHOD /path requests with JSON bodies, or NDJSON for _bulk and _msearch; run the request at the cursor, the exact selection, or a batch in editor order.
• Search hits can be viewed as a table while the complete HTTP response remains available as raw JSON or text.
• A server-side allowlist accepts supported search, document, index, mapping, settings, alias, health, and limited CAT operations. Unknown and high-privilege endpoints are rejected by default.
• Destructive operations require an expiring one-time confirmation. Connection protection still takes precedence and blocks writes as well as script-bearing reads.
• Writes are limited to concrete indices and require Elasticsearch view_index_metadata (or manage) permission so GoNavi can verify the target before sending data; aliases and data streams are not accepted as write targets.
• Request templates adapt document, mapping, and Bulk paths for Elasticsearch 6, 7, and 8.

This console targets Elasticsearch 6/7/8. It does not claim OpenSearch compatibility, and intentionally excludes reindex, security, snapshot, node, cluster-settings, template, pipeline, lifecycle, and other unrestricted administration APIs.

🚀 Quick Start

Prerequisites

• Go 1.21+
• Node.js 18+
• Wails CLI

go install github.com/wailsapp/wails/v2/cmd/[email protected]

Develop

git clone https://github.com/Syngnat/GoNavi.git
cd GoNavi

wails dev                          # full hot reload
node tools/wails-fast-dev.mjs      # faster when Go exports unchanged
node tools/wails-fast-dev.mjs --refresh-bindings  # after Go export signature changes

Build

wails build
wails build -clean   # clean build before release

Artifacts → build/bin.

Prefer a binary?

Grab the latest build from Releases
(macOS AMD64/ARM64 · Windows AMD64 · Linux WebKitGTK 4.0/4.1).

Standalone CLI

Stable and dev builds carry headless gonavi archives under the gonavi-cli_${VERSION}_${GOOS}_${GOARCH} namespace with a matching gonavi-cli_${VERSION}_checksums.txt file. Download the matching archive from the GitHub Release, verify its checksum, extract it, then run:

gonavi list-connections
gonavi query --conn CONNECTION_ID --sql 'SELECT * FROM orders LIMIT 10'
gonavi export --conn CONNECTION_ID --output orders.csv --sql 'SELECT * FROM orders'
gonavi batch --conn CONNECTION_ID --file migration.sql --allow-write

The project does not currently publish the CLI to npm. Install it directly from the verified release archive instead.

The stable workflow also generates and retains a checksum-driven WinGet manifest artifact for Syngnat.GoNavi.CLI; it must be accepted by the WinGet community repository before the package is available there. The existing desktop GoNavi package is separate. After acceptance, install with:

winget install --id Syngnat.GoNavi.CLI -e

The CLI shares the active data root with the desktop application: GONAVI_DATA_ROOT first, then ~/.gonavi/storage_root.json, then ~/.gonavi. Use a 0600 owner-only --connection-file for transient credentials; secrets are never accepted as command-line flags. Query output defaults to JSONL, while diagnostics go to stderr. Mutating SQL also requires the stored AI safety level, connection protections, and --allow-write.

For Linux containers, copy docker.cli.env.example, set the host data root and your host UID/GID, then run the CLI against the same mounted /data directory:

cp docker.cli.env.example docker.cli.env
docker compose --env-file docker.cli.env -f docker-compose.cli.yml run --rm gonavi-cli list-connections

🌐 Web Server (Experimental)

Same Go backend + React UI over HTTP — not a containerized Wails window.

go build .
.\GoNavi-Wails.exe web-server --addr 127.0.0.1:34116

• First visit → /setup (admin password; optional Google Authenticator)
• Bridge: window.go.* / window.runtime.* → HTTP / SSE
• Sessions, recovery codes, login rate limits

Docker / Podman

cp docker.web-server.env.example docker.web-server.env
# set GONAVI_HOST_DATA_ROOT (absolute path)
# optional: GONAVI_WEB_PASSWORD (min 6 chars)
docker compose --env-file docker.web-server.env -f docker-compose.web-server.yml up -d

Open http://127.0.0.1:34116. Mount the active data root at /data
(connections.json, daily_secrets.json, optional drivers/).
Auth state → web_auth.json.

Do not expose an unhardened web entry to the public internet. Use reverse proxy + HTTPS in production.

Health: GET /__gonavi/healthz
Local source build: add -f docker-compose.web-server.local.yml --build.

After changing env passwords:

docker compose --env-file docker.web-server.env -f docker-compose.web-server.yml up -d --force-recreate

(docker restart does not reload env files.)

🤖 MCP & Agents

Ship schema tools to agents without shipping your vault:

cp docker.mcp-server.env.example docker.mcp-server.env
docker compose --env-file docker.mcp-server.env -f docker-compose.mcp-server.yml up -d

Safety defaults: remote schema-only omits execute_sql; mutating SQL requires explicit allowMutating=true.
Details: cmd/gonavi-mcp-server/README.md.

Linux build environment only

docker build -f Dockerfile.build-env -t gonavi-build-env:local .
docker run --rm -it -v "$PWD:/workspace" -w /workspace gonavi-build-env:local bash

📦 Release Pipeline

Push a v* tag → GitHub Actions builds multi-arch releases.
Notes auto-generated from merged PRs via .github/release.yaml.

🛠 Troubleshooting

# Common Evergreen install path (64-bit Windows)
Test-Path "${env:ProgramFiles(x86)}\Microsoft\EdgeWebView\Application"

# Registry (a `pv` version usually means installed)
Get-ItemProperty -Path "HKLM:\SOFTWARE\WOW6432Node\Microsoft\EdgeUpdate\Clients\{F3017226-FE2A-4295-8BDF-00C3A9A7E4C5}" `
  -ErrorAction SilentlyContinue |
  Select-Object pv, name

# Interactive
.\MicrosoftEdgeWebView2RuntimeInstallerX64.exe

# Silent (batch / SCCM friendly)
.\MicrosoftEdgeWebView2RuntimeInstallerX64.exe /silent /install

.\GoNavi.exe web-server --addr 127.0.0.1:34116

# Debian 13 / Ubuntu 24.04+
sudo apt-get update
sudo apt-get install -y libgtk-3-0 libwebkit2gtk-4.1-0 libjavascriptcoregtk-4.1-0

# Ubuntu 22.04 / Debian 12
sudo apt-get update
sudo apt-get install -y libgtk-3-0 libwebkit2gtk-4.0-37 libjavascriptcoregtk-4.0-18

sudo apt-get update
sudo apt-get install -y fonts-noto-cjk fonts-wqy-microhei
fc-cache -fv

💖 Sponsors

华龙中转站 · Hualong Transfer Station
_{AI API Gateway · multi-model routing · domestic high-speed endpoint}

Special thanks to 华龙中转站 (Hualong Transfer Station) for sponsoring GoNavi open-source development.

Looking for a solid LLM relay?
👉 https://api-fast.hualong.online/ — console, docs, and the domestic high-speed endpoint.

Hualong also sponsored a shared 50B token pool for GoNavi co-maintainers, used via API Key (not 50B per person). Rules and how to apply: Issue #671.

🤝 Contributing

Issues and PRs welcome. Branch from dev, PR against dev.

• CONTRIBUTING.md
• Call for contributors (incl. sponsored token pool): Issue #671

💬 Contact & Feedback

For technical reports, include version, OS, and repro steps when possible. Windows blank/crash on intranet images: WebView2 guide.

⭐ Star History

Links

• 华龙中转站 · Hualong Transfer Station — AI API Gateway (GoNavi sponsor)
• linux.do
• AIBook

License

Apache-2.0

_{Built for people who live in SQL, schemas, and agent loops.}
